Core Product Information

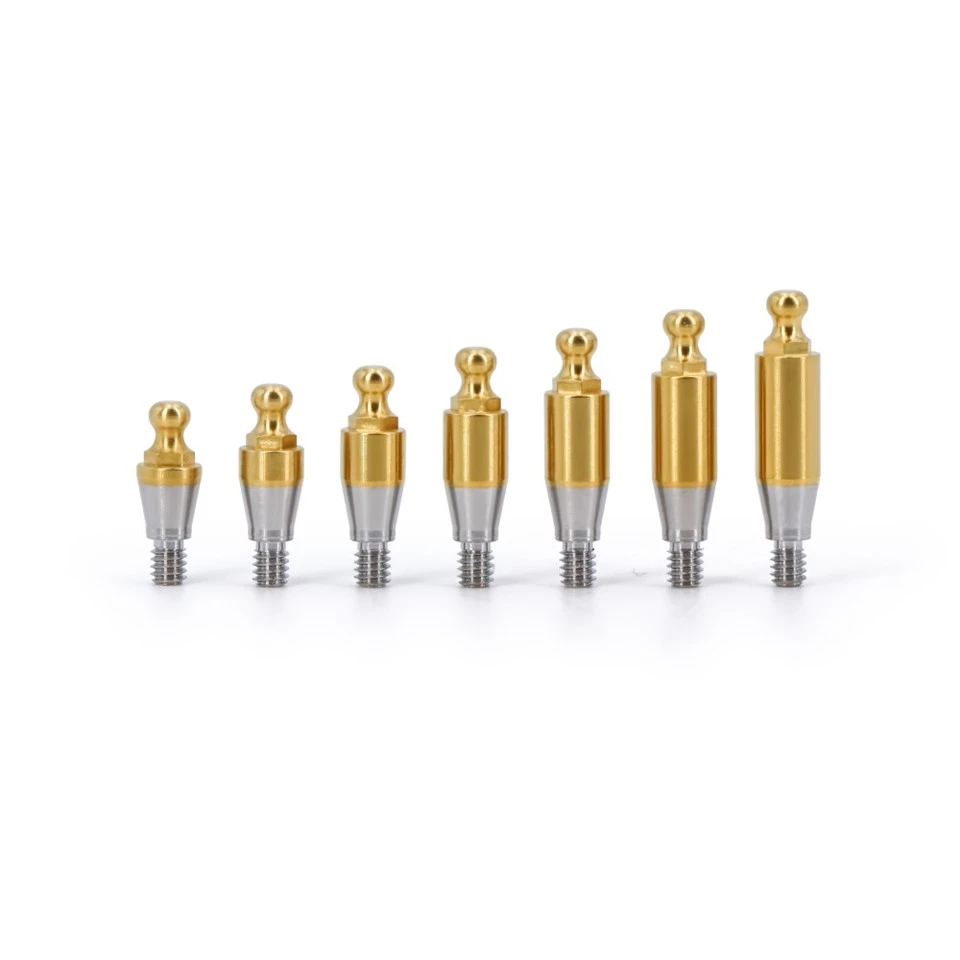

Product Name: O-ring Retainer Locator Set

Product Introduction:The O-ring Retainer Locator Set is a dedicated implant restoration attachment system. Its core consists of a spherical abutment (including a spherical head) and an O-ring retainer. Its main function is to connect the implant to the removable overdenture, essentially a "spherical snap-fit connection system." Unlike the snap-fit design of ordinary locator abutments, the O-ring Retainer Locator Set uses a combination of a "spherical head + O-ring" for retention. It is a commonly used accessory for semi-fixed implant restorations, emphasizing lightweight, flexibility, and comfort. Its core purpose is to provide stable retention for removable overdentures while allowing slight movement, reducing lateral pressure on the implant. It is suitable for partial or full edentulous cases, or situations involving alveolar bone resorption or irregular implant distribution. It is especially suitable for patients who require high wearing comfort and need to use removable dentures long-term, making it a preferred restorative accessory in clinical practice that balances retention and comfort. Product Features and Advantages

Features and Advantages

Spherical Abutment + O-ring Retention: Stable and Flexible

The spherical abutment head and O-ring retention body precisely match, with the O-ring tightly wrapping around the spherical head. This provides strong retention force, effectively preventing denture loosening and dislodgement, ensuring stability during normal chewing and speech. Simultaneously, it allows for slight horizontal and vertical movement of the denture, reducing lateral impact on the implant during chewing, protecting the implant, and extending its lifespan.

Comfortable Wear, Minimal Foreign Body Sensation

The overall design is compact and lightweight, with a smooth and rounded spherical head and a soft and elastic O-ring. There is no noticeable foreign body sensation when in contact with the oral mucosa, and it will not irritate the gums or mucosa. Compared to the metal clasps of traditional removable dentures, the spherical abutment is hidden inside the denture, preventing friction against the inside of the mouth, making it more comfortable to wear, more acceptable to patients, and especially suitable for long-term wear.

Strong Angle Adaptability, Handling Complex Scenarios

The ball-cap abutment supports a certain angle of deviation compensation, adapting to scenarios with slight implant tilt (typically compensating for 0-15°), eliminating the need for additional implant angle adjustments or bone augmentation surgery. It offers flexible adaptation for cases of partial or full edentulism with irregular implant distribution or unique alveolar bone morphology, reducing clinical treatment difficulty.

Convenient Installation and Removal, Simple Operation for Doctors and Maintenance for Patients

During clinical installation, doctors simply fix the ball-cap abutment onto the implant and then insert the retainer with an O-ring into the denture. The process is simple, requiring no complex processing and saving clinical operation time. Patients can easily remove and insert the denture daily, facilitating cleaning and effectively removing food debris and bacteria, reducing the risk of bad breath and gingivitis. Suitable for all population groups, including the elderly.

Safe and durable materials with excellent biocompatibility

The ball-shaped abutment is made of medical-grade titanium alloy, which is high in strength, wear-resistant, and corrosion-resistant. It can adapt to the complex acid-base environment in the oral cavity and is not easily worn or deformed even after long-term use. The O-rings are made of medical-grade silicone or rubber, which is elastic, non-toxic, harmless, and biocompatible. It will not cause allergic reactions or irritate oral soft tissues, making it suitable for long-term wear.

Low bone volume requirements and wide applicability

Similar to the Locator abutment, the ball-shaped abutment has lower requirements for alveolar bone volume. For partial edentulism, only 2-4 implants are typically needed, and for complete edentulism, only 4-6 implants are needed to achieve stable denture retention. It is especially suitable for patients with severe alveolar bone resorption, insufficient bone volume, or elderly patients or those whose physical condition is not suitable for complex fixed implant surgery, making it highly practical.

Easy Replacement, Low Maintenance Costs

The core consumable component of the entire system is the O-ring. If elasticity decreases or retention weakens after long-term use, the O-ring can be replaced individually without replacing the entire abutment, significantly reducing the patient's long-term maintenance costs. Simultaneously, the ball cap abutment has a simple structure, is not easily damaged, and can be flexibly disassembled and adjusted if the denture position needs to be changed, making it highly practical.
